Products
VST - LUX 06

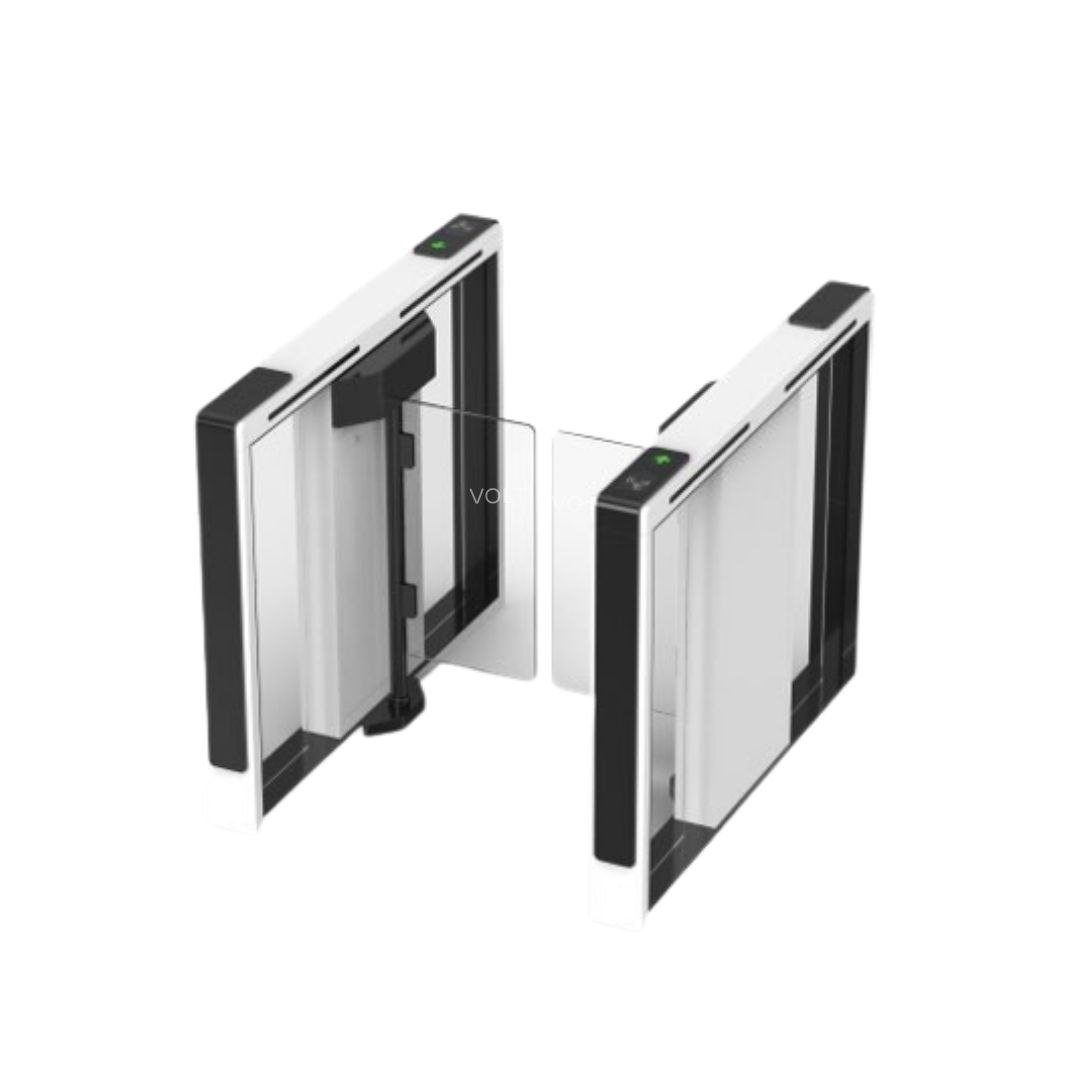

Model VST-LUX 06 – High-Speed Swing Turnstile The fastest gate in the collection, opening and closing rapidly to support heavy usage. It supports wide passages (600–1100mm) and high glass panels up to 1800mm. Specifications: • Material: Steel + varnish + tempered glass • Size: 1400 x 280 x 978 mm • Net weight: 65–77 kg • Passage width: 600–1100 mm • Glass height: 900–1800 mm • Throughput: 55 persons/min • LED indicator: Yes
VST - LUX 05
Model VST-LUX 05 – Optical Flap Turnstile This is the most robust and fast flap barrier gate with up to 55 persons per minute capacity. Ideal for metro stations, office buildings, and locations with heavy foot traffic. Specifications: • Material: Steel + varnish + tempered glass • Size: 1400 x 280 x 978 mm • Net weight: 65 kg • Passage width: 550 mm • Throughput: 55 persons/min
VST - LUX 04

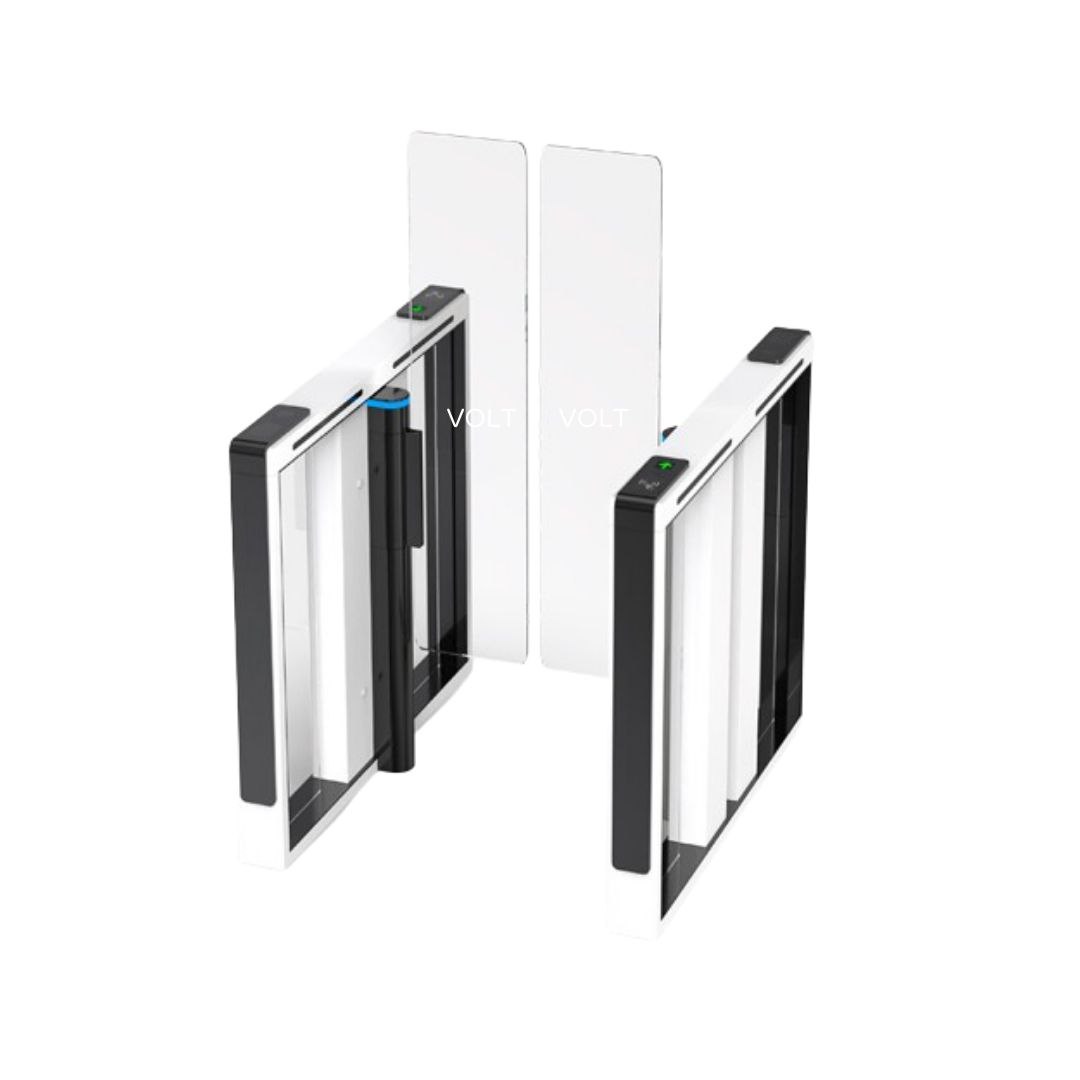

Model VST-LUX 04 – Swing Turnstile Designed with customizable glass height options (900mm or 1800mm) and lane widths up to 1100mm, it provides high security and accessibility for wheelchair users or large luggage. Specifications: • Material: Steel + varnish + tempered glass • Size: 1400 x 280 x 978 mm • Net weight: 65 kg • Passage width: 550 mm • Throughput: 55 persons/min
VST - LUX 03

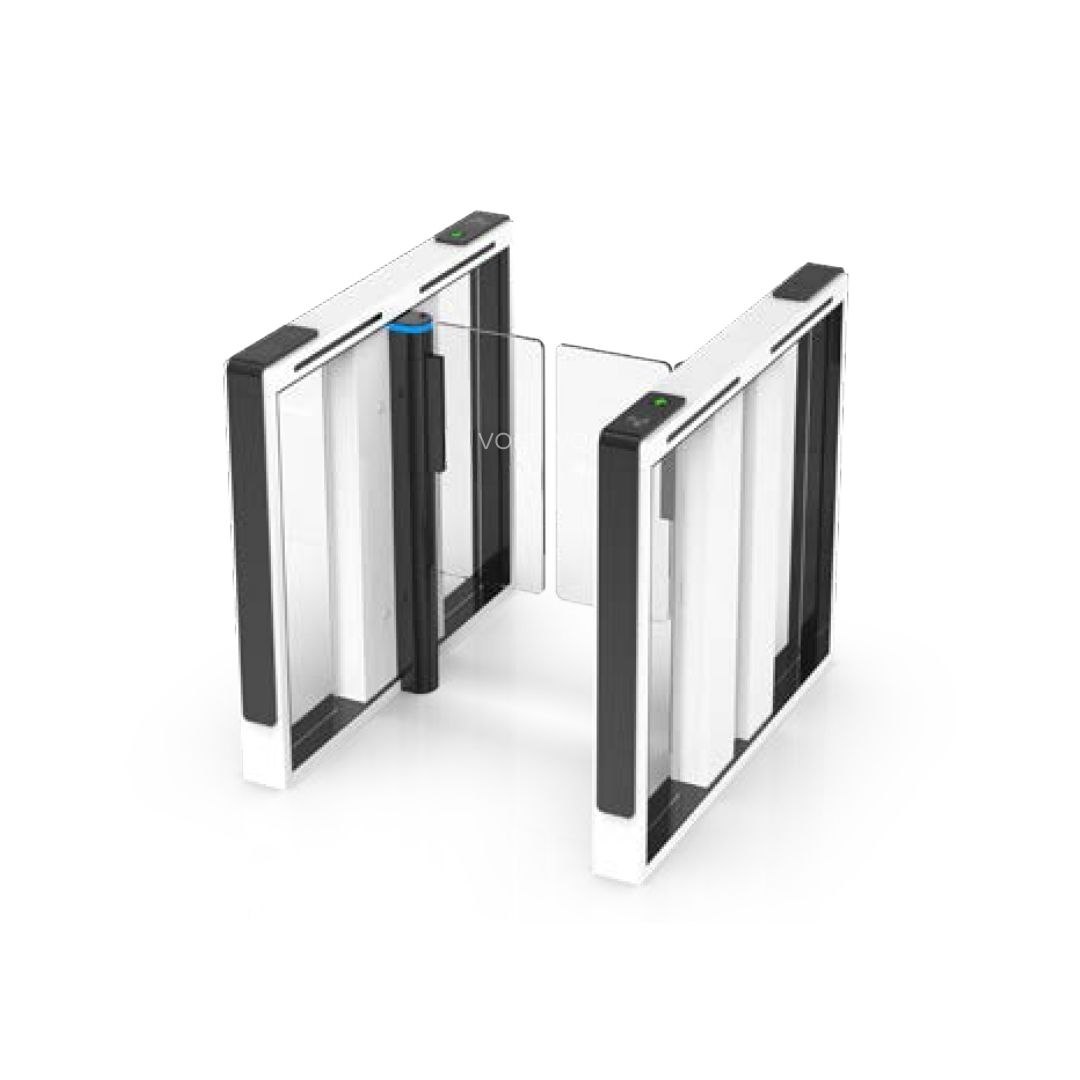

Model VST-LUX 03 – Optical Swing Turnstile A stylish swing gate turnstile offering both 600mm standard and 1100mm handicapped lanes. It is suitable for modern lobbies with wide entrance needs. Specifications: • Material: Steel + varnish + tempered glass • Size: 1400 x 120 x 978 mm • Net weight: 65 kg • Passage width: 600–1100 mm • Throughput: 40 persons/min • LED indicator: Yes
VST - LUX 02

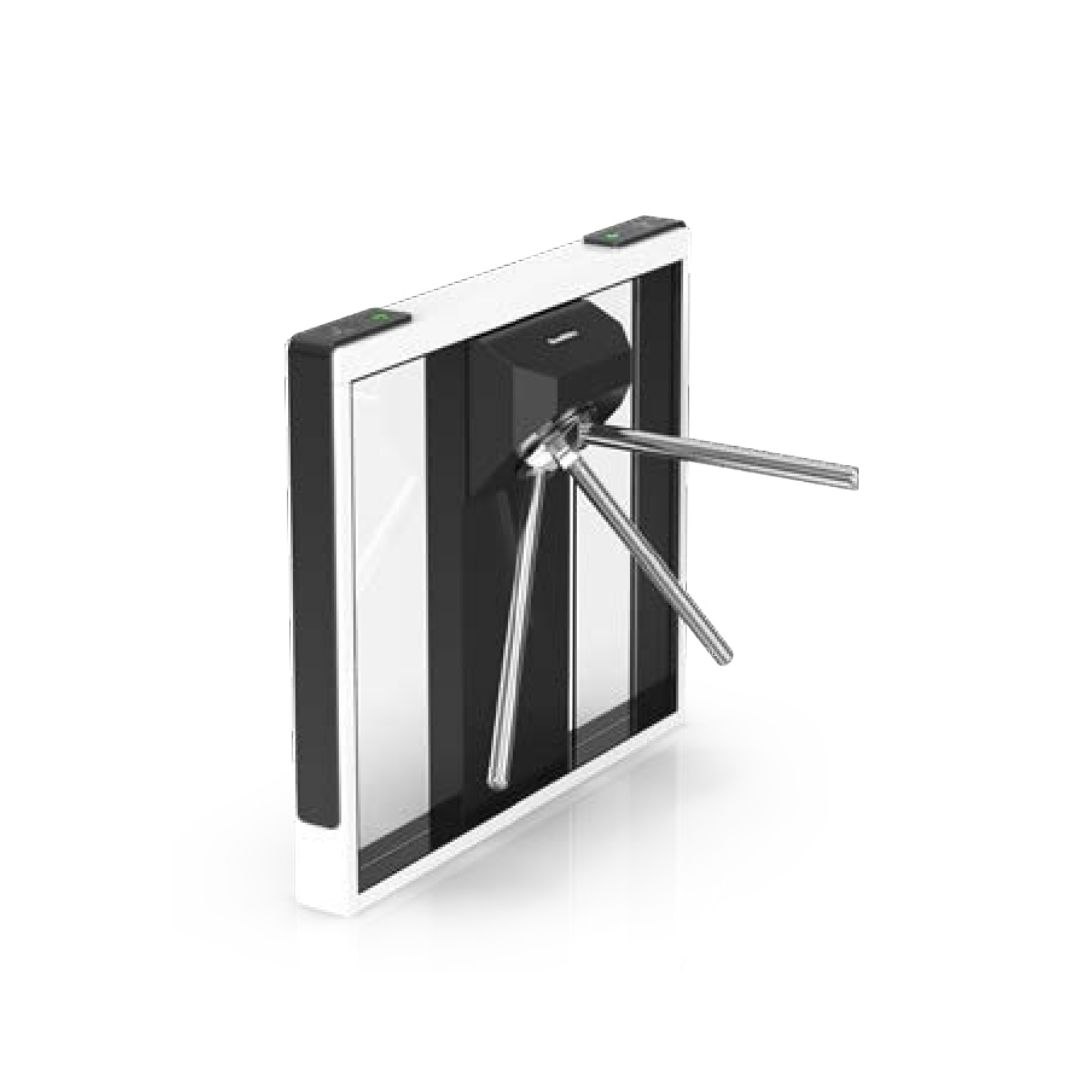

Model VST-LUX 02 – Tripod Turnstile This model enhances both style and control. It has a strong visual presence with a tempered glass finish, suitable for modern office buildings. Specifications: • Material: Steel + black & white varnish + tempered glass • Size: 1400 x 120 x 978 mm • Net weight: 65 kg • Passage width: 550 mm • Throughput: 40 persons/min • LED indicator: Yes
VST - LUX 01

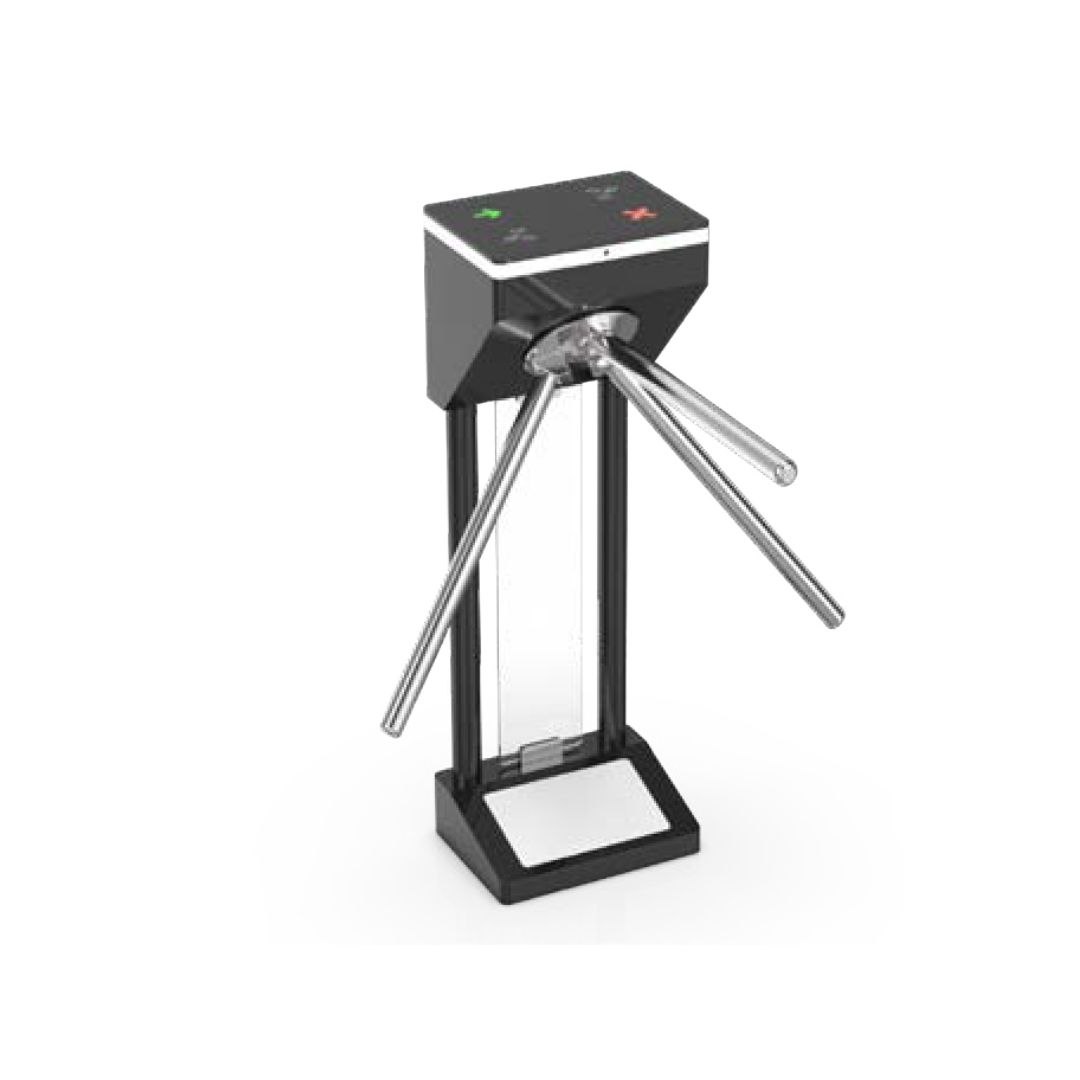

Model VST-LUX 01 – Slim Tripod Turnstile The VST-LUX01 is a sleek and ultra-slim tripod turnstile. It allows only one person per pass and is designed to prevent tailgating. The classic black and white finish gives it a premium look, ideal for high-end facilities. Specifications: • Material: Steel + black & white stoving varnish + tempered glass • Size: 380 x 280 x 1000 mm • Net weight: 35 kg • Passage width: 550 mm • Throughput: 40 persons/min • LED indicator: Yes
VST - 02

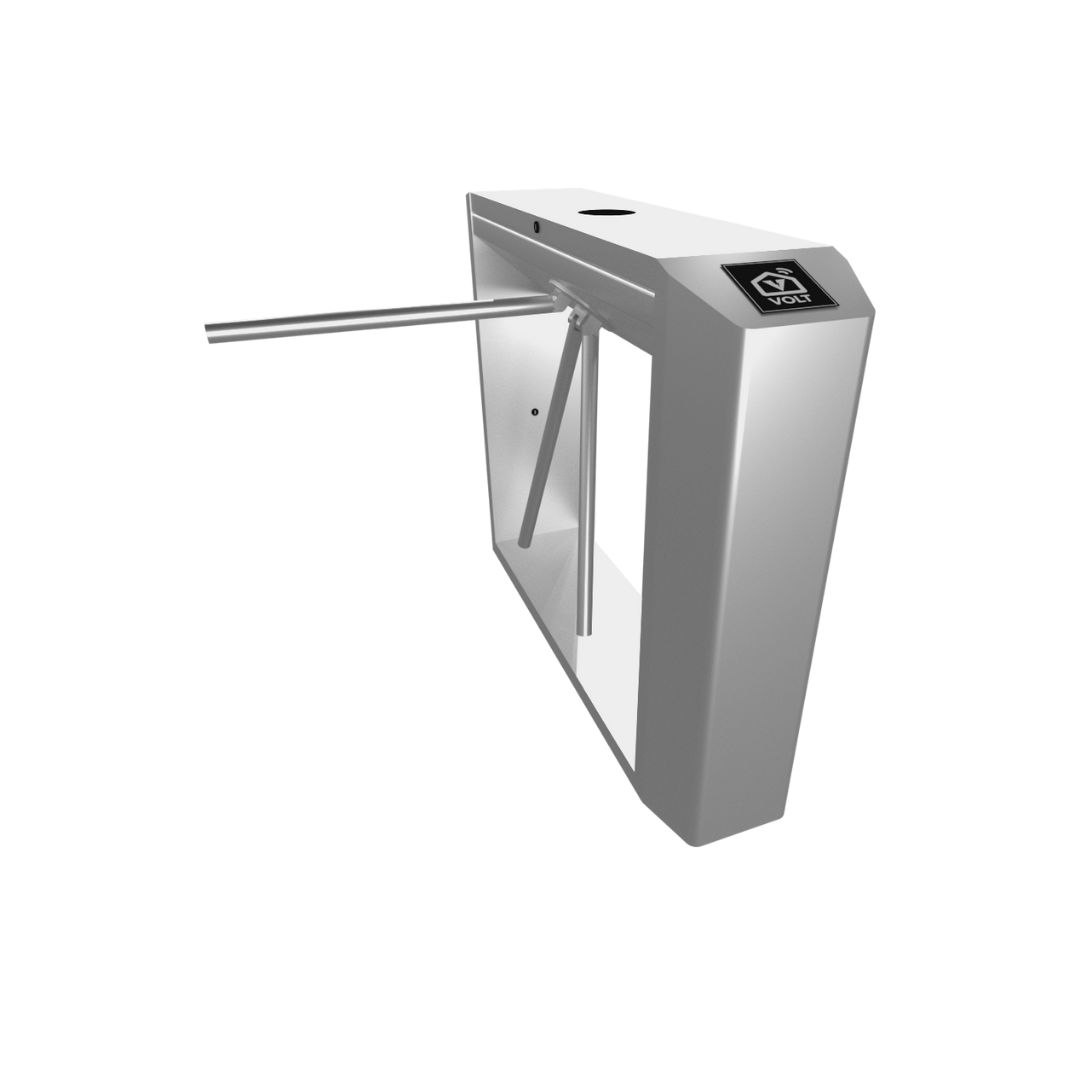

Model VST-02 – Tripod Turnstile The VST-02 is a stainless steel tripod turnstile designed for high-traffic areas, offering robust performance and smooth access control. It operates via dry contact signal or access control systems, unlocking one arm for a single authorized person. Specifications: • Dimensions: 980H x 1200L x 280W mm • Arm length: 500 mm • Arm angle: 120° • Throughput: 35 persons/min • Housing: 1.2–2.0 mm SUS 304 brushed stainless steel • Power supply: AC 220V/110V, 50/60Hz • Drive: Motor-driven • Signal input: Relay or DC12V level/pulse • Operating temp: -28°C to +60°C • Humidity: 5–85% • Durability: 3 million cycles • Gross weight: 54 kg • Optional: third-party system integration, passage counter, material customization
VST - 01

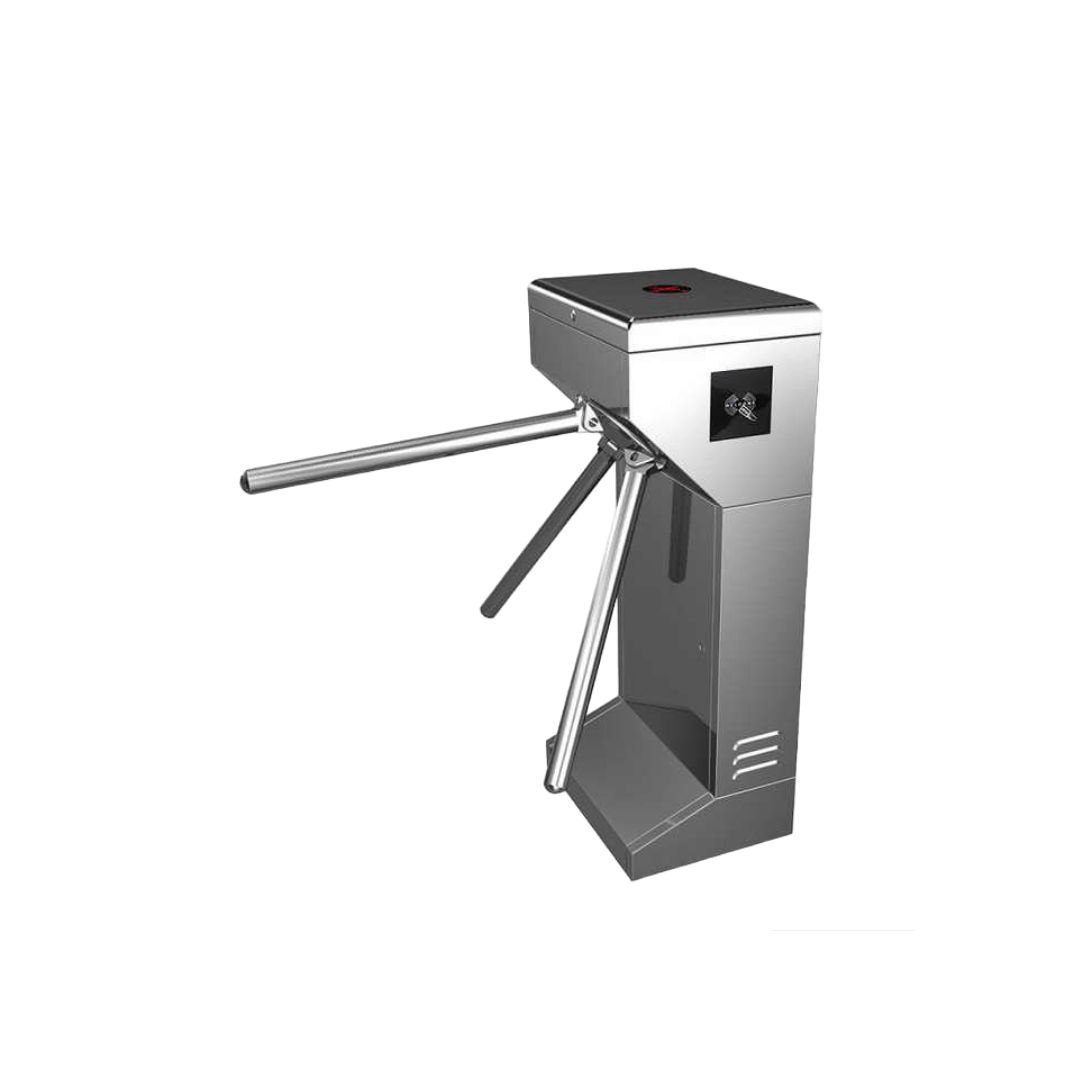

Model VST-01 – Tripod Turnstile The VST-01 tripod turnstile is a compact and cost-effective access control system designed for high-traffic environments. It offers silent and smooth operation, crafted from stainless steel for high durability. The tripod arms remain locked by default and only unlock when a valid fingerprint or RFID card is detected. During emergencies or power outages, the arms drop automatically, enabling fast evacuation. Optional REX button support is available for exit without credentials. The device features high reliability with alloy steel tripod hubs, a patented oil lubrication system, and high-quality electrical components. Key Features: • Built-in access reader (RFID or fingerprint) • Drop arm safety mechanism during emergencies • LED indicators for access status • Supports anti-tailgating • Plug-and-play installation • Stainless steel housing with compact design
